0.1 + 0.2 or I Dont Understand Floating Point Numbers

17 Mar 2024 •

javascript
math
numbers
ieee-754
floating
point

What's 0.1 + 0.2?

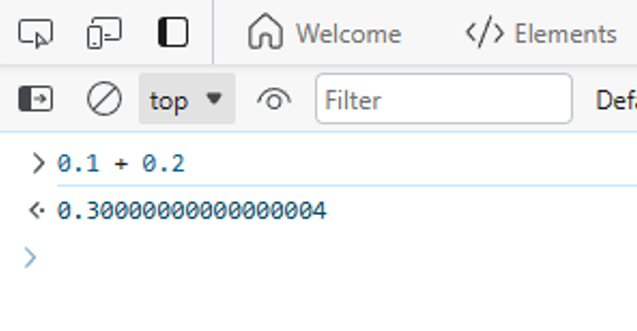

If someone were to ask me this I’d calmly respond, 0.3 and carry on with my day. But when I open a Node console or my developer console in my browser and enter 0.1 + 0.2. What is the result?

0.1 plus 0.2 is in fact 0.30000000000000004 When using floating point numbers

Once again, Javascript is up to its old tricks… But I shouldn’t give Javascript all the credit here. Javascript has simply implemented its Number type to follow a widely used double floating point number standard known as IEEE-754.

How many numbers are there? Quite a few… There’s 1, 2, 3, 42, and much, much more! And how many numbers are between 1 and 2?
There’s 1.1, 1.01, 1.001, 1.945671456000000012314440014444000148478, we’re just scratching the surface here, but let’s say also a lot! How many bits of memory are available in my computer? Probably fewer than there are numbers. How can my computer represent so many numbers with such little space?

The IEEE-754 Standard for Floating Point Arithmetic

Computers need a way to capture all these numbers with a limited amount of space. Many systems had developed their own implementations for managing this, but this made for poor reliability and portability. The IEEE-754 floating point number standard was developed to fix this. So how does it work? Floating point formats can be of varying sizes:

16 bit floating point (aka Half)
32 bit floating point (aka Single)
64 bit floating point (aka Double), etc

For the sake of brevity, I’ll use 16 bit floating point as an example.

Given 16 bits:

1 bit for the sign sign (if the number is positive or negative)
5 bits for the exponent (This represents the biased exponent and determines where the floating decimal will be placed)
10 bits for the mantissa (The normalized number)

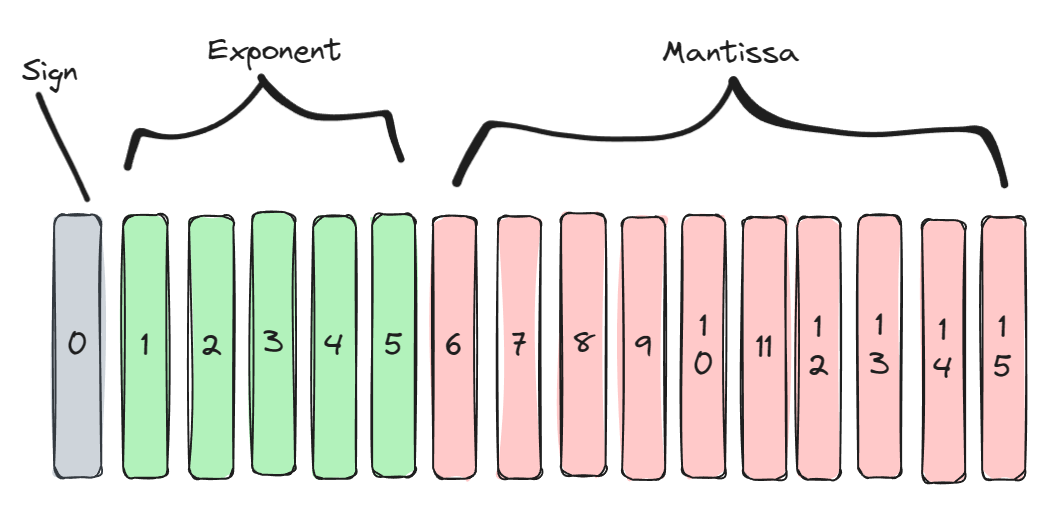

the bit allocations in a 16 bit floating point number system

Lets do the math!

Given the number 12.5, I can do some math to convert it into floating point binary number:

As the number is positive, I set sign to 0.

sign = 0

To calculate the mantissa, I first continuously divide the left-hand side of the decimal by 2 until the whole number reaches 0. Then I multiply the right-hand side of the decimal by 2 until the result has no remainder.

whole number	decimal
`12 / 2 = 6` - remainder 0(0)	`0.5 * 2 = 1.0` - 1
`6 / 2 = 3` - remainder 0(0)
`3 / 2 = 1.5` - remainder 5(1)
`1 / 2 = 0.5` - remainder 5(1)
result: `1100`	result `1`

This results in 1100.1.

I then normalize the mantissa to get the exponent:

1100.1 = 1.1001*2^3

I get the biased exponent by adding the number of non-signed bits to the exponent value.

3 + 15 = 18 = 10010

The format assumes a leading 1 in the mantissa so I can ignore it. This results in:

0 10010 1001000000

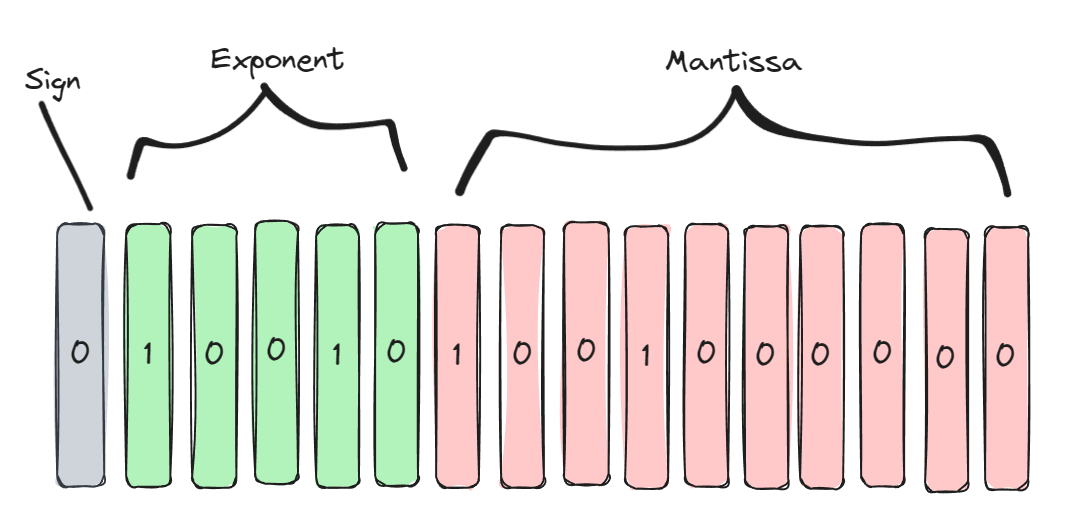

12.5 in half floating point binary is 01001010010000000

So What?

OK, that’s cool and all but this still doesn’t explain why 0.1 + 0.2 = 0.30000000000000004!

Why don’t I do this calculation again, but this time I’ll convert 0.1 into 16 bit floating point binary.

0.1 is a positive number, so sign is easy:

sign = 0.

Now to get our mantissa:

whole number	decimal
`0 / 2 = 0` - remainder 0(0)	`0.1 * 2 = 0.2` 0
	`0.2 * 2 = 0.4` 0
	`0.4 * 2 = 0.8` 0
	`0.8 * 2 = 1.6` 1
	`0.6 * 2 = 1.2` 1
	`0.2 * 2 = 0.4` 0 !!
result: `0`	result `0001100110`

The calculation loops back on itself after calculating 0.6 * 2!

Using the 10 bits of space we have available we get:

0.0001100110.

To get the exponent, I normalize the value and add the bias:

1.1*2^-4

-4 + 15 = 11 = 01011

result: 0 01011 0001100110

The issue here is that I haven’t captured the exact value of 0.1 in our conversion. There’s an infinite series of 0011 that follows here.
The same issue occurs when calculating 0.2.

Now I see why some numbers result in unexpected calculations. Just as 1/3 cannot be precisely captured in decimal notation, (there’s an infinite amount of recurring 3s), some decimal values cannot be precisely captured in floating point numbers.

When converting numbers too large for the bit capacity, the number may be rounded up or rounded down to the nearest bit depending on if the next bit is a 0 or 1.

In the case of 0.1 + 0.2, here we can see that both 64bit floating point binary numbers are rounded up to the next bit which results in the 0100 (4) at the tail end of our result.

0.1	0 01111111011 1001100110011001100110011001100110011001100110011010
+ 0.2	0 01111111100 1001100110011001100110011001100110011001100110011010
= 0.3	0 01111111101 0011001100110011001100110011001100110011001100110100

In Conclusion

The IEEE-754 floating point number system is a great tool for representing a large array of numbers with some small quirks that surprises developers on occasion.

In most scenarios, these minor rounding errors wont dramatically change the result of a calculation, (being 0.00000000000000004 off the result is not a game changer).

Where they do become important is when doing comparisons, e.g. (x + y === 3) or when presenting these results to humans.

When working with floating point numbers it’s important to account for these scenarios and potentially limit the decimal places or parse the values as Integers.

A common solution for avoiding this is to only work with whole numbers (e.g. cents instead of dollars).

Now, the next time someone asks me what is 0.1 plus 0.2? I will have a new opportunity to answer It depends..

Other interesting quirks of Floating Point numbers

As the sign and mantissa are distinct values, this standard can create some interesting values:
(16 bit floating point binaries shown for brevity)

Infinity	0 11111 0000000000
-Infinity	1 11111 0000000000
0	0 00000 0000000000
-0	1 00000 0000000000
NaN	0 11111 0000000001

When the exponent is all 1s and mantissa is all 0s this is considered Infinity
When the sign is 1 Infinity naturally becomes -Infinity
When the exponent is all 0s and mantissa is all 0s the result is 0
Again, when the sign is 1 we get -0
When the exponent is all 1s and the mantissa is a non 0 value, this is considered Not a Number (NaN)
